PRESENTATION
Veratron digital monitors, both in the 7" version and the smaller 4.3" version, are the most complete option to be able to digitize all the boat's information. The relationship between the cost of the investment and the information provided by the equipment is the best of the entire range, allowing with very little investment, to have a complete system for controlling engines, tanks, and even data such as navigation. Integration with other equipment already installed such as multifunction plotters, instruments, etc... would complete the system to get the most out of it.
Its installation is as simple as removing the analog instruments that we want to replace, for example (rev counter, engine temperature, oil pressure, fuel levels, rudder blade indicator.... Locate the cables that bring the information from the sensor to the clock, and connect them to the monitor wiring (in each of its inputs), without the need for external converter elements or other devices. Next, we turn on the equipment and configure each of the inputs as we want. Very simple and without complicated installations.

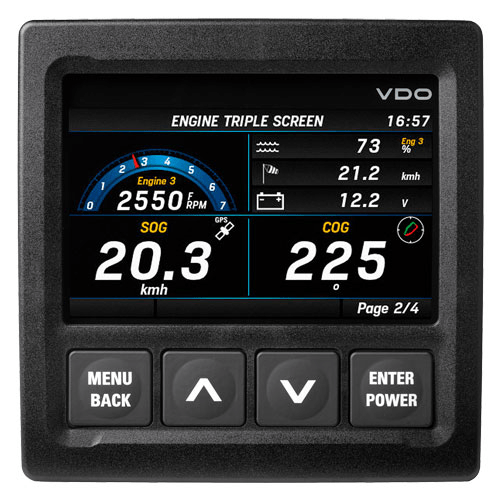

4.3" TFT MULTIFUNCTION OCEANLINK MONITOR
The OceanLink 4.3" multi-function TFT monitor features a special 24 bit / 16 million color laminar display design with IPS technology for perfect viewing even in direct sunlight.
These TFT monitors display and distribute the data received, both from the NMEA 2000 and J1939 CAN Bus systems and from analog sensors connected directly to the monitor.
The user can configure different data pages with presentations from one to four overlapping grids.
Voltage: 12/24V
| FEATURES |
|---|
| Lamellar design mineral glass lens |
| Degree of protection front and rear IPX7 |
| 1 puerto NMEA 2000 |
| 1 puerto J1939 |
| 2 inputs 4-20mA |
| 2 analog inputs |
| 1 frequency input |
| 1 EasyLink data output |
| 1 programmable alarm output 500 mA |
| Permissible operating temperature -30ºC to 80ºC |
| Resolution: 480 x 272 (WQVGA) |
| Tamaño 125x125x15,7mm |

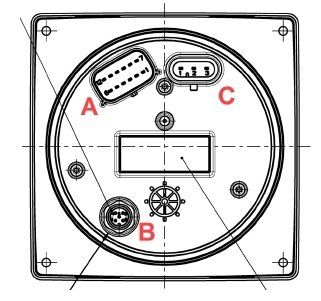

ELECTRIC CONNECTIONS

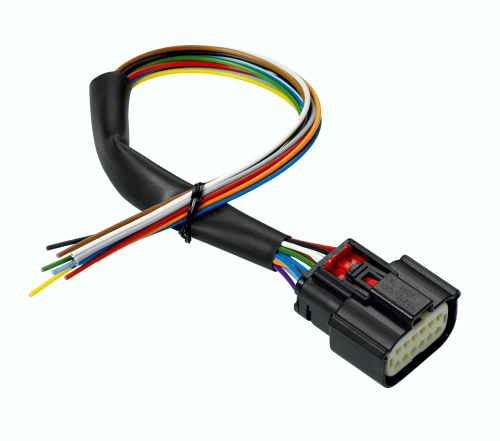

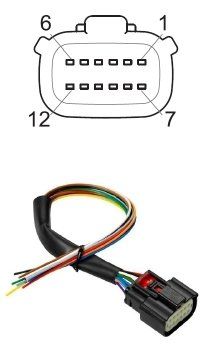

CONNECTOR A (ENGINE)
| PIN NUMBER | COLOR CABLE | DESCRIPTION |
|---|---|---|
| 1 | RED | POWER SUPPLY 12 / 24v |
| 2 | NEGRO | NEGATIVE |
| 3 | WHITE | ALARM OUT |
| 4 | GREEN | FREQUENCY SIGNAL |
| 5 | BLUE | SAE J1939-CANL |
| 6 | WHITE BLUE | SAE J1939 CAN-H |
| 7 | YELLOW | IGNITION 12V |
| 8 | GREY | RESISTIVE SENSOR |
| 9 | BROWN | RESISTIVE SENSOR |
| 10 | ORANGE | DAY/NIGHT LIGHTING |
| 11 | LIGHT BLUE | 4-20mA SENSOR |
| 12 | PURPLE | 4-20mA SENSOR |
CONECTOR B (NMEA 2000)
| PIN NUMBER | DESCRIPTION |
|---|---|
| 1 | MESH |
| 2 | RED-S(V ) |
| 3 | RED-C(V-) |
| 4 | RED-H(CAN-H) |
| 5 | RED-L(CAN-L) |
CONECTOR C (EASYLINK)
| PIN NUMBER | DESCRIPTION |
|---|---|
| 1 | POWER SUPPLY 12V |
| 2 | DATOS EASYLINK |
| 3 | NEGATIVE GND |

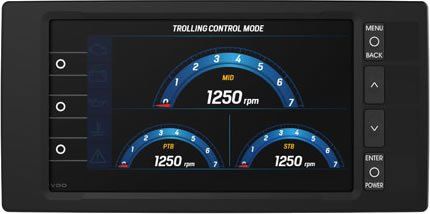

MONITOR 7" TFT MULTIFUNCTION OCEANLINK
The OceanLink 7" multifunction TFT monitor features a special 24 bit / 16 million color laminar display design with IPS technology for perfect viewing even in direct sunlight.
These TFT monitors display and distribute the data received, both from the NMEA 2000 and J1939 CAN Bus systems and from analog sensors connected directly to the monitor.
The user can configure different data pages with presentations from one to four overlapping grids.
Voltage: 12/24V
| FEATURES |
|---|
| Lamellar design mineral glass lens |
| Degree of protection front and rear IPX7 |
| 1 puerto NMEA 2000 |
| 2 J1939 ports |
| 2 inputs 4-20mA |
| 6 analog inputs |
| 2 frequency inputs |
| 3 digital inputs 0-5V |
| 2 video inputs |
| 2 alarm outputs |
| 2 easylink outputs |
| 2 programmable alarm outputs 500mA |
| operating temperature -30 to 90 degrees |
| resolution 800x400 WGA |

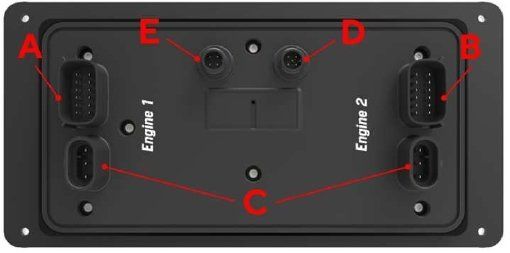

ELECTRIC CONNECTIONS
CONNECTOR A (ENGINE)
| PIN NUMBER | COLOR CABLE | DESCRIPTION |
|---|---|---|
| 1 | RED | POWER SUPPLY 12 / 24v |
| 2 | NEGRO | NEGATIVE |
| 3 | WHITE | ALARM OUT |
| 4 | GREEN | FREQUENCY SIGNAL |
| 5 | BLUE | SAE J1939-CANL |
| 6 | WHITE BLUE | SAE J1939 CAN-H |
| 7 | YELLOW | IGNITION 12V |
| 8 | GREY | RESISTIVE SENSOR |
| 9 | BROWN | RESISTIVE SENSOR |
| 10 | ORANGE | DAY/NIGHT LIGHTING |
| 11 | LIGHT BLUE | 4-20mA SENSOR |
| 12 | PURPLE | 4-20mA SENSOR |
CONNECTOR B (ENGINE)
| PIN NUMBER | COLOR CABLE | DESCRIPTION |
|---|---|---|
| 1 | ROSA | CONFIGURABLE ALARM INPUT |
| 2 | NEGRO | NEGATIVE |
| 3 | WHITE | ALARM OUT |
| 4 | GREEN | FREQUENCY SIGNAL |
| 5 | BLUE | SAE J1939-CANL |
| 6 | WHITE BLUE | SAE J1939 CAN-H |
| 7 | YELLOW | 0-5V INPUT SENSOR |
| 8 | GREY | RESISTIVE SENSOR |
| 9 | BROWN | RESISTIVE SENSOR |
| 10 | ORANGE | 0-5V INPUT SENSOR |
| 11 | LIGHT BLUE | RESISTIVE SENSOR |
| 12 | PURPLE | RESISTIVE SENSOR |
CONNECTOR D (NMEA 2000)
| PIN NUMBER | DESCRIPTION |
|---|---|
| 1 | MESH |
| 2 | RED-S(V ) |
| 3 | RED-C(V-) |
| 4 | RED-H(CAN-H) |
| 5 | RED-L(CAN-L) |
CONECTORES C (EASYLINK)
| PIN NUMBER | DESCRIPTION |
|---|---|
| 1 | POWER SUPPLY 12V |
| 2 | DATOS EASYLINK |
| 3 | NEGATIVE GND |
CONNECTOR AND (VIDEO)
| PIN NUMBER | DESCRIPTION |
|---|---|
| 1 | VIDEO INPUT 2 |
| 2 | VIDEO INPUT 1 |
| 3 | GND 2 |
| 4 | GND 1 |
EXAMPLES OF SCREENS
